PIR_DETECTOR
## devices.types.PIR_DETECTOR
红外入侵检测器
### 1. 设备数据例子：
```
{
"devices.types.PIR_DETECTOR": {
"category": "devices.category.SECURITY_DETECTOR",
"type": "devices.types.PIR_DETECTOR",
"googleType": "action.devices.types.SENSOR",
"enableGoogleSync": True,
"name": {
"defaultName": ["Smart PIR Motion Detector"],
"name": "Smart PIR Motion Detector",
"nicknames": ["Smart PIR Motion Detector"]
},
"deviceInfo": {
"manufacturer": "devices.vendor.WULIAN",
"model": "WL-ZSPWBPW-PI11-02",
"hwVersion": None,
"swVersion": None
},
"willReportState": True,
"attributes": {
"sensorStatesSupported": [{
"name": "humanPassDetectState",
"descriptiveCapabilities": {
"availableStates": [ "human_pass_detected", "no_human_pass_detected"]
},
"updateTime": None, #<timestamp_when_this_state_is_update>
}],
"stateEventSupported": [
{
"name": "human pass detected",
"condition": {"states.currentSensorStateData.humanPassDetectState": {"$eq": "human_pass_detected"}}, #{<state_filed>: {'<operate>': '<value>'}}
"parameters": None,
"description": "human pass detected"
},
{
"name": "no human pass detected",
"condition": {"states.currentSensorStateData.humanPassDetectState": {"$eq": "no_human_pass_detected"}},
"parameters": None,
"description": "no human pass detected"
},
{
"name": "no human pass detected for 5 minutes",
"condition": {"states.currentSensorStateData.humanPassDetectState": {"$eq": "no_human_pass_detected", "$keep_period": {"$parameters": "keep_period"}}},
"parameters": [{"name": "keep_period", "type": "int", "unit": "minutes", "value": 5}],
"description": "no human pass detected for 5 minutes"
},
{
"name": "no human pass detected for defined minutes",
"condition": {"states.currentSensorStateData.humanPassDetectState": {"$eq": "no_human_pass_detected", "$keep_period": {"$parameters": "keep_period"}}},
"parameters": [
{"name": "keep_period", "type": "int", "unit": "minutes"},
],
"description": "no human pass detected for defined minutes"
}
],
"stateCommandSupported": [
{
"name": "set arming",
"executions": [{
"command": 'action.devices.commands.ArmDisarm',
"params": {
"isArmed": True
}
}],
"parameters": None,
"description": "set arming"
},
{
"name": "set disarming",
"executions": [{
"command": 'action.devices.commands.ArmDisarm',
"params": {
"isArmed": False
}
}],
"parameters": None,
"description": "set disarming"
}
]
},
"traits": [
"action.devices.traits.ArmDisarm",
"action.devices.traits.SensorState"
],
"otherDeviceIds": None,
"gatewayDeviceId": None,
"customData": None,
"room": None,
"roomHint": None,
"error": None,
"states": {
"online": False,
"isArmed": True,
"currentSensorStateData": {
"humanPassDetectState": "no_human_pass_detected"
}
},
"alarm": "<alarm_message or null>"
}
}
```
### 2. 设备相关UI

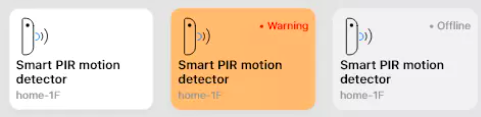

【首页设备卡片】
- 卡片背景颜色：
（1）白色表示设备在线，对应 states.online == True，同时右上角显示 .Normal
（2）灰色表示设备离线，对应 states.online == False，同时右上角显示 .Offline
（3）黄色代表当前有人经过告警，同时右上角显示 .Warning，安防检测类设备都会有对应的告警，比如天然气检测器，检测到天然气会报警，烟雾检测器 检测 到烟雾会报警
- 左上角 是 设备的icon，这个是基于设备类型字段
- Smart PIR motion detector，这个是基于 name.nicknames[0] 字段
- home_1F，这个是基于 roomHint 字段

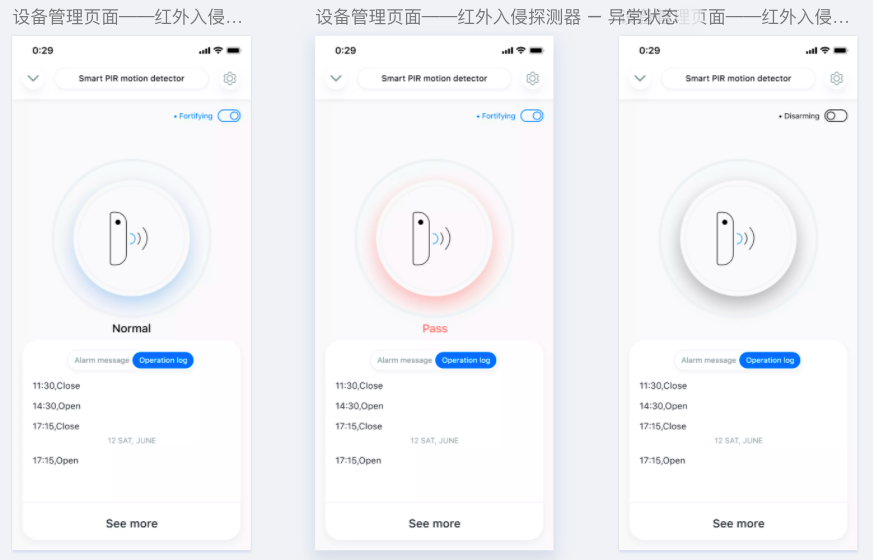

【设备管理页】
- 标题 是 设备的昵称
- 右上角 设置 按钮，点击进入设备详细设置，包括设置设备昵称，设备归属房间，删除设备等。
- 右上角 切换按钮，是设备设防/撤防切换按钮
- 中间部分，显示当前检测器检测状态，第一张图表示状态正常（no_human_pass_detected）, 第二张图表示告警状态（human_pass_detected）,第三张图表示当前处于撤防状态，不会显示正常/告警状态。
- 下半部分，显示历史告警信息和历史操作日志
【设备详细设置页面】
- 点击 name, 修改设备昵称
- 点击 room, 修改设备归属房间
- 点击 device information, 查看设备厂商/型号/固件信息
- 点击 alarm message, 查看设备历史告警信息
- 点击 message log, 查看设备操作日志
- 点击 delete device, 删除设备，提示用户确认删除
### 3. 设备类型 type
```devices.types.PIR_DETECTOR```
### 4. 设备类别 category
```devices.category.SECURITY_DETECTOR```
### 5. 设备支持的 traits
```
"action.devices.traits.ArmDisarm" # 表示设备支持 设防撤防功能
"action.devices.traits.SensorState" # 表示设备支持某种类型的传感器检测，具体检测能力，参考设备的attributes.sensorStatesSupported字段
"sensorStatesSupported": [{
"name": "humanPassDetectState",
"descriptiveCapabilities": {
"availableStates": [ "human_pass_detected", "no_human_pass_detected"]
},
"updateTime": null
}]
# 传感器状态字段：humanPassDetectState
# 取值范围：[ "human_pass_detected", "no_human_pass_detected"]
```
### 6. 设备支持的指令控制
<b>（1） 设防</b>
- 接口URL
{base_url}/execute_device
- Body_Para
```
{
"owner_id": "<owner_id>",
"house_id": "<house_id>",
"device_id": "<device_id>",
"executions": [{
"command": "action.devices.commands.ArmDisarm",
"params": {
"isArmed": True
}
}]
}
```
<b>（2） 撤防</b>
- 接口URL
{base_url}/execute_device
- Body_Para
```
{
"owner_id": "<owner_id>",
"house_id": "<house_id>",
"device_id": "<device_id>",
"executions": [{
"command": "action.devices.commands.ArmDisarm",
"params": {
"isArmed": False
}
}]
}
```
### 7. 修改设备名称 和 归属的房间
>w 参考 接口说明 ｜ 设备管理 章节
### 8. 获取设备操作日志
### 9. 获取设备历史告警列表
### 10. 设备支持的用来作为场景条件的状态事件
### 11. 设备支持的可用来作为场景动作的设备控制指
